Place of Origin:
Jiangxi, China
Brand Name:
ORK
Certification:
REACH / ROHS / ISO9001 / IATF / SGS / FDA
Model Number:
AS568 & PG Standard O-Rings

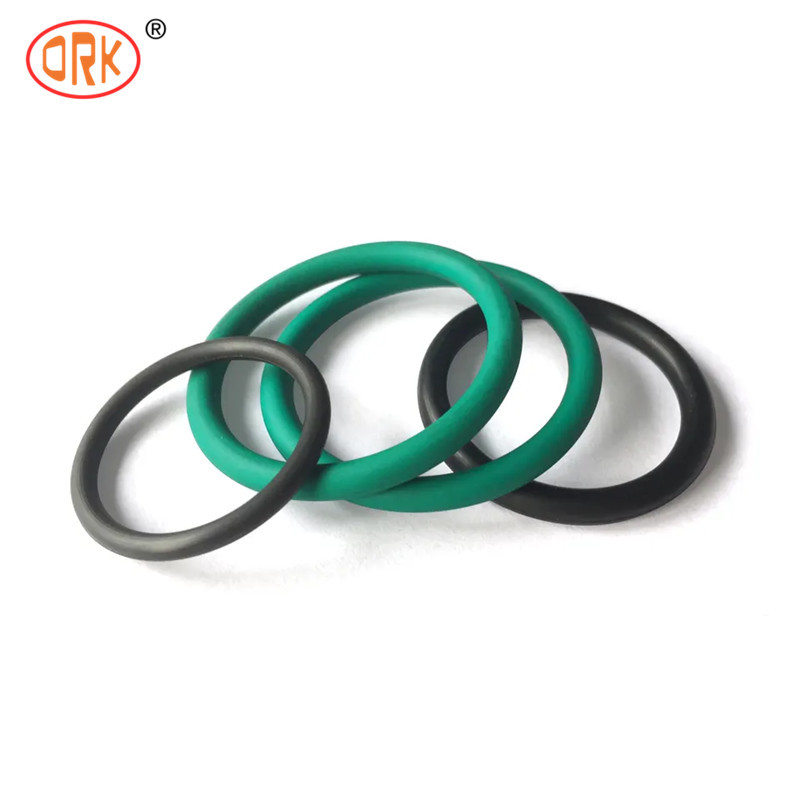

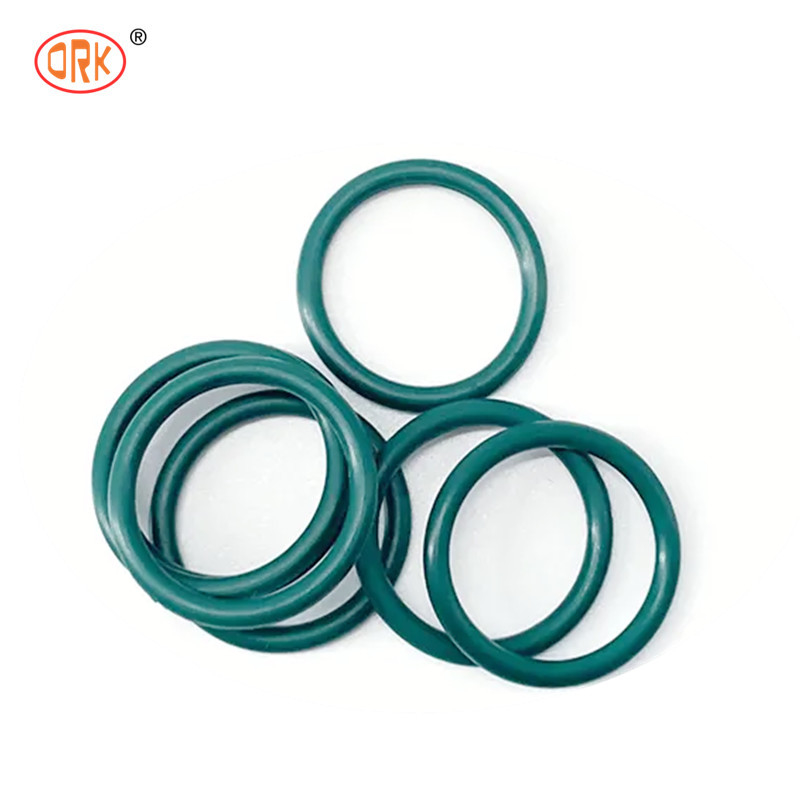

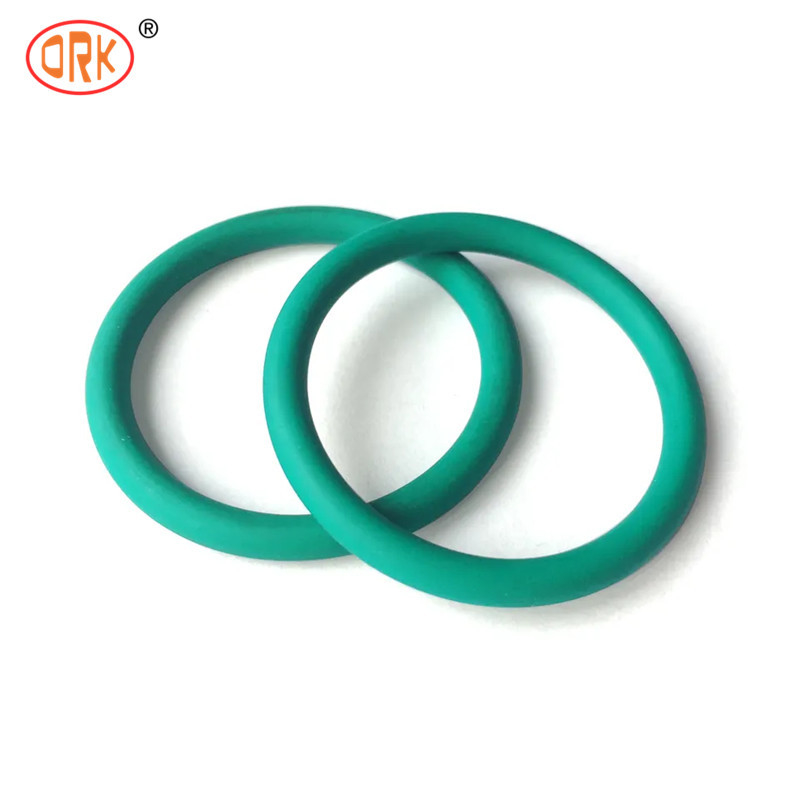

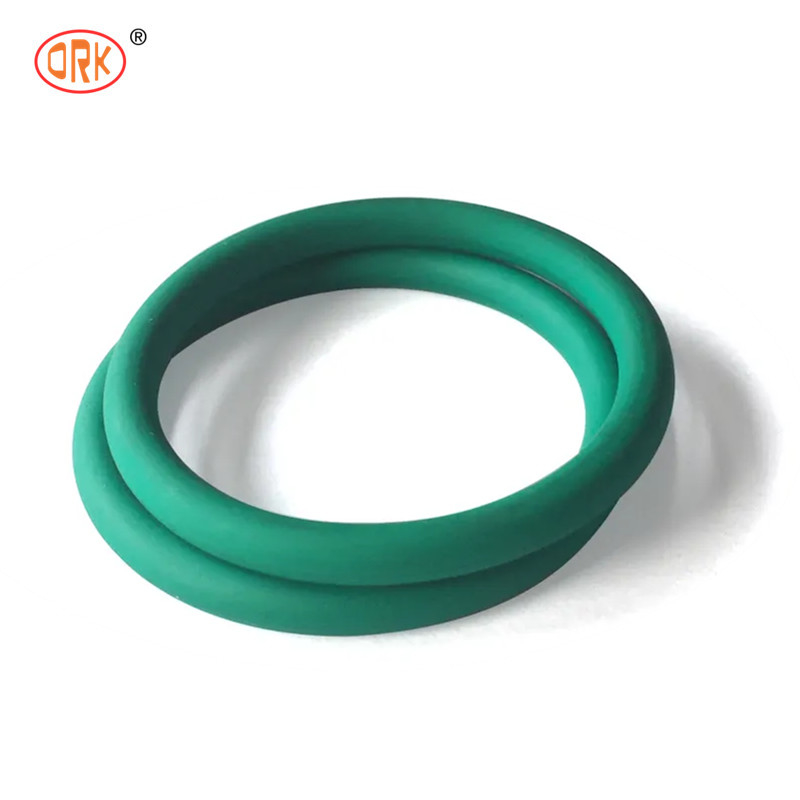

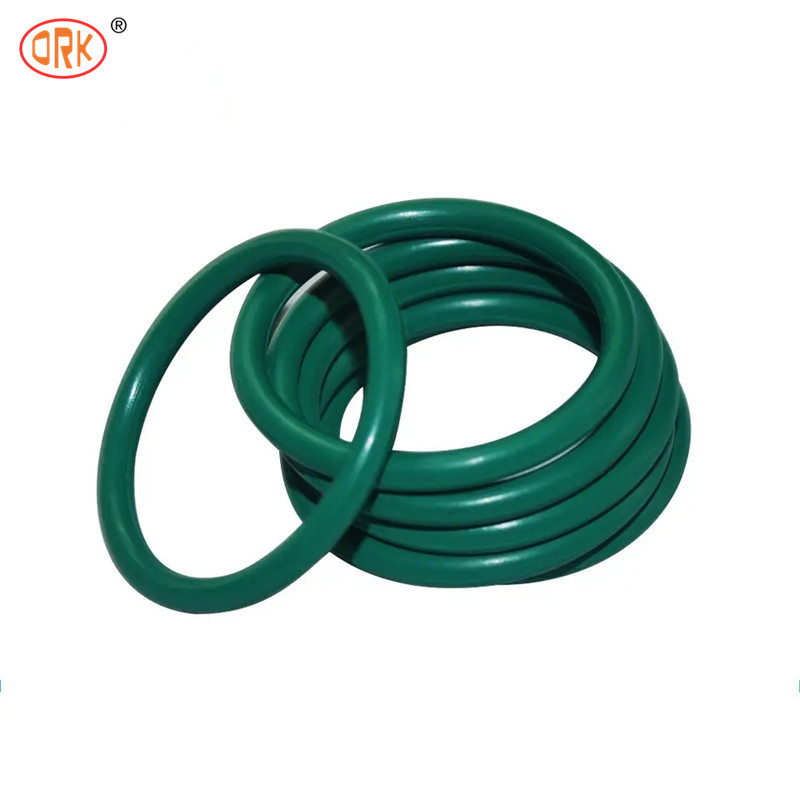

Customized Color ORK Nitrile Rubber O-Ring 1mm for Waterproof Sealing Pneumatic Piston Seal
Type: O Ring
Size: ID X CS, OD=ID + 2XCS
O-Ring Technical requirements:
Appearance meets GB/T3452.2-2007 Material meets HG/T2579-2008 Size meets GB/T3452.1-2005
In addition, all our products are ROHS and REACH Compliant (we mainly export products to USA and Europe market).
O-Ring Features:
1. Good sealing solution, long service life.
2. Easy installation reduces risk.
3. Working in various medium based on different elastomer material.
| Product Name | Rubber O-Ring |
| Materials | NBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, FPM , PU ,ACM ,SBR |
| Temperature |
NBR(-40~120°C),FFKM(-20~320°C) Viton(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant |
| Cerfiticate | ISO 9001:2008 |
| Hardness | 30-90 shores A |
| Color | Red, Black, White, blue, green, Clear, etc |
| Size | Any size, Customized/standard and nonstandard |
| Sample time | If instock, within 3 days after payment |
| Delivery time |
7-15 days by express after payment 10-20 days by ship |
| Shipping |
Small quantity: UPS/FeDex/DHL express Large quantity: by Air/Sea |
| Customized | OEM & ODM are welcomed |
| packing | plastic bag&carton box or according to your requirements |
| Application | chemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on. |
NBR Rubber Features:
| Material | NBR(Nitrile Rubber/Buna-N) |
| Advantage | 1,Excellent Abrasion-Resistance,Good Rebound Resistance |
| 2,Good Tensile Strength and Elongation | |
| 3,Excellent Animal and Vegetable Oil Resistance | |
| 4,Good Oil and Fuel Resistance | |
| 5,Good Water Resistance | |
| Disadvantage | 1,Poor Oxygenated-Solvent Resistance |
| 2,Poor Ozone Resistance | |
| Temperature | -40℃-120℃, -50℃-150℃(special formula) |
| Application | 1,Fuel tank, lubricating oil tank and oil in the hydraulic oil, gas, water, silicone grease, silicone oil and other fluid medium rubber parts, especially the sealing parts. |
| 2,It is currently the most widely used, the lowest cost of rubber seals. |
Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and
vegetable oil. Nitrile rubber also offers strong resistance to heat aging - often a key advantage over
natural rubber.
Nitrile rubber performs well in carburetor and fuel pump diaphragms, aircraft hoses, seals and gaskets
as well as oil-lined tubing. Due to its versatility, nitrile is used in applications involving not only oil and
fuel resistance, but those applications requiring resistance to heat, abrasion, water, and gas permeability.
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
NBR-FDA CANEC23015737713(SZP23-030799).pdf
NBR-ROHS CANEC23015740929(SZP23-030677).pdf
NBR-REACH CANEC23015740931(SZP23-030677).pdf
NBR-PAHS CANEC23015740935(SZP23-030677).pdf

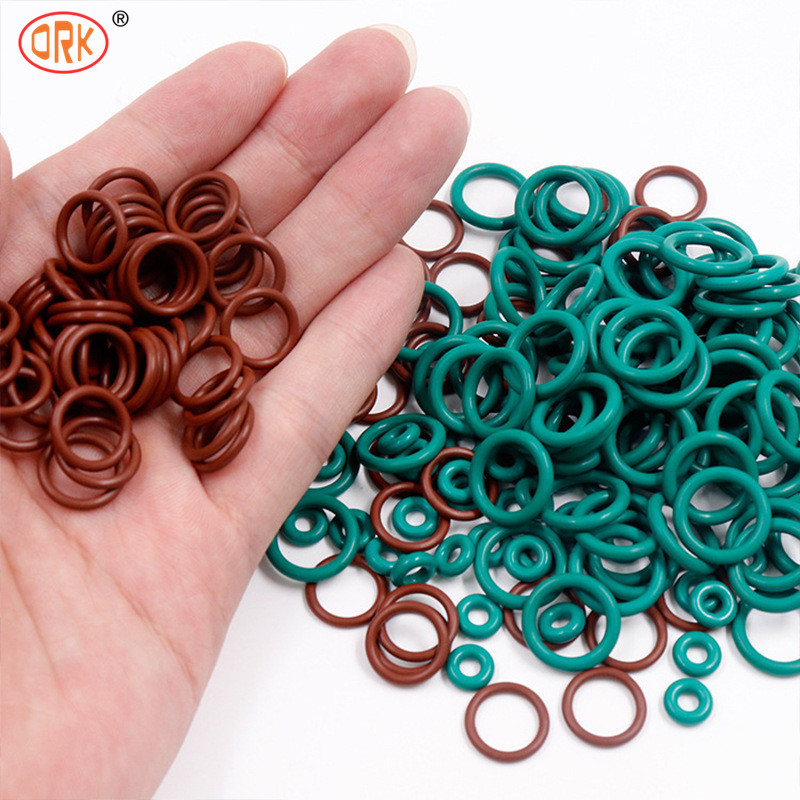

For color , we can make as customers' requirements .Below table is the colorful o rings
we made.If you need colored o rings , you can give me pantone number .
We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
1. Since 2006, focus on rubber seals, especially for auto parts
2. Certificates: ISO9001, IATF16949, ISO14001, ISO45001,ISO 13485
3. Two factories, more than 18000㎡,clean room 600㎡, with 300 workers.
4. Molds > 10000 sets, especially o rings, about 5000 sets.
5.O-ring series covers American standard (AS568), Japanese standard (JIS), national
standard(GB), and produces a large number of customized non-standard parts.
6. Material: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR .The rubber materials
used meet the requirements of ROHS2.0 and REACH235.
7. Material Certificates: FDA, ROHS, REACH, UL157, CP65 WRC, EN549,EN45545.
8. Products are widely used in automotive parts, electronic connectors, valves, pneumatics,
power tools, new energy, medical equipment, electronic products and other fields.
Our strength:
☆ PROFESSIONAL OEM & ODM 30+ YEARS OF RUBBER SEALING MANUFACTURER
☆ FULL RANGE OF MOLDS OVER 10,000+
☆ PROFESSIONAL TEAM PROVIDE EFFICIENT TRADING SERVICE
☆ STRICT QUALITY CONTROL--QUALITY GUARANTEE
☆ OWNED A TESTING LABORATORY WITH SOPHISTICATED TEST EQUIPMENT
☆ ADVANCED EQUIPMENTS: 50+ CURING MACHINE 8 CCD AUTOMATIC INSPECTION MACHINE 8 ALL-IN-ONE MACHINE
Progress
Quality control
Material Inspection:Storage of all raw materials before the test, and issue a report on the
corresponding material properties, compared with raw material's own property report, two
reports property values is consistent, can put in storage.
Model Inspection:After the mold development or mold cleaning finished on the machine,
we will test all the specifications of the mold to ensure that each cavity of the product
specifications and quality.
Production Inspection:The production process of the product inspection personnel timing
semi-finished product inspection, ensure the quality of the rationality of technology, defective
rate control in a reasonable range.
Quanlity Control:The quality inspection department will conduct a sampling inspection of each
batch of products
Production Full Inspection:The optical inspection machine can ensure the appearance and
dimension of the product are 100% qualified.
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always
satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all
our new customers to become long-term customers.
Send your inquiry directly to us
