Place of Origin:
Jiangxi, China
Brand Name:
ORK
Certification:
REACH / ROHS / ISO9001 / IATF / SGS / FDA
Model Number:
AS568 & PG Standard O-Rings
Freely Sealing Usage EPDM O Ring Seals for Customized Waterproof and Oil-Proof at ORK
Type: O Ring
Size: ID X CS, OD=ID + 2XCS
O-ring advantage:
O-rings have the following advantages compared to other types of seals:
-- Suitable for a variety of sealing forms: static seal, dynamic seal
Suitable for a variety of materials, sizes and grooves have been standardized, interchangeable
- Suitable for a variety of sports: rotary motion, axial reciprocating motion or combined
motion (such as rotary reciprocating combined motion)
- Suitable for many different sealing media: oil, water, gas, chemical media or other mixed
media
Effective sealing of oil, water, air, gas and various chemical media through the selection
of suitable rubber materials and appropriate formulation design. The temperature range
is wide (-60 ° C ~ +220 ° C), the pressure can be up to 1500Kg / cm2 when used in fixed
use (combined with the reinforcing ring).
--Simple design, compact structure, easy to assemble and disassemble
The O-ring cross-section structure is extremely simple, and has a self-sealing effect, and the
sealing performance is reliable.
Since the O-ring itself and the mounting structure are extremely simple and standardized,
installation and replacement are very easy.
--More varieties of materials
Can be selected according to different fluids: nitrile rubber (NBR), fluororubber (FKM),
silicone rubber (VMQ), ethylene propylene rubber (EPDM), neoprene (CR), butyl rubber (BU),
natural rubber (NR), etc.
--low cost
--The dynamic friction resistance is relatively small
| Product name | O-RING |
| Material | NR, NBR, EPDM, SBR, VITON, CR, SILICONE, FLUOROSILICONE, ACM, IIR ,PU, HNBR |
| Color | Black, Brown, Orange-Red, or as pantone card, CUSTOMIZED |
|
Standard Sizes
|
• AS 568 Standard Sizes: • Cross Section:1.78mm/2.62mm/3.53mm/5.33mm/6.99mm • JIS B 2401 Standard Sizes: • P type Cross Section:1.9mm/2.4mm/3.5mm/5.7mm/8.4mm • G type Cross Section:3.1mm/5.7mm • V type Cross Section:4mm/6mm/10mm • S type Cross Section:1.5mm/2mm |
| Hardness | 30-90 Shore A, Normal is 70 Shore A |
| Temperature | -40~150℃, 300℃, CUSTOMIZED |
| Package | CUSTOMIZED |
| Material | EPDM(Ethylene propylene Rubber) |
| Advantage | 1,Excellent Weathering Resistance |
| 2,Excellent Ozone Resistance | |
| 3,Excellent Flame Resistance | |
| 4,Excellent Heat Resistance | |
| 5,Excellent Water Resistance | |
| 6,Excellent Oxygenated-Solvent Resistance | |
| Disadvantage | 1,Poor Oxygenated-Solvent Resistance |
| 2,Poor Oil and Fuel Resistance | |
| Temperature | -50℃-150℃, -50℃-200℃(Special formula) |
| Application | 1,Shower Sealings or parts |
| 1,Rubber parts for brake (brake) systems | |
| 2,Radiator (Automotive tank) seal |
*Service Temperature
For EPDM the service temperature can be designed from -55 C to 125 C or up to 150 C (for
peroxide cured systems).
*Application
In phosphate-ester based hydraulic fluids and glycol based brake fluids systems Ethylene
Propylene Rubber is good choice for sealing parts. EPDM is also is usually used in hot water or
steam applications up to 150 C.
We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM ,SBR , FLS , etc...
| Material | Hardness (Shore A) |
Temperature (ºC) |
Main Color | Advantage | Price Level | Shelf Life (Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 - 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 - 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 - 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 - 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 - 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 - 120 | Black | Versatility Properties | Fair | 5-10 |
| FFKM | 70-90 | -10 - 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 - 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 - 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / polyurethane | 60-90 | -40 - 90 | Natural | High strength and wear resistance | High | About 10 |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH,ROHS, SGS etc.
EPDM-ROHS CANEC23015740901(SZP23-030677).pdf
EPDM-REACH CANEC23015740903(SZP23-030677).pdf
EPDM-FDA CANEC23015737701(SZP23-030799).pdf
EPDM-ELV CANEC23015740907(SZP23-030677)-Final.pdf

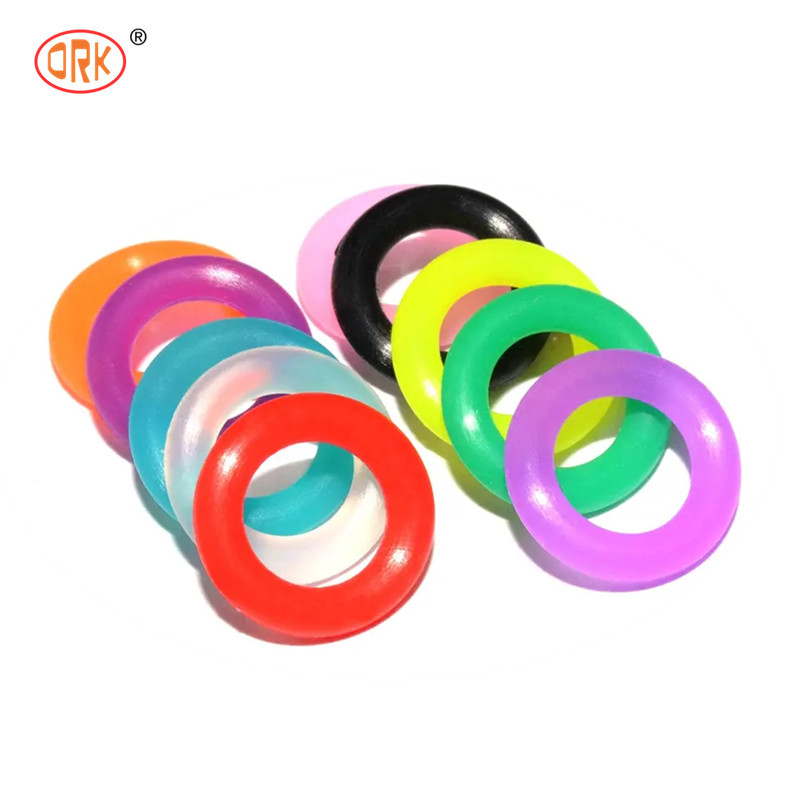

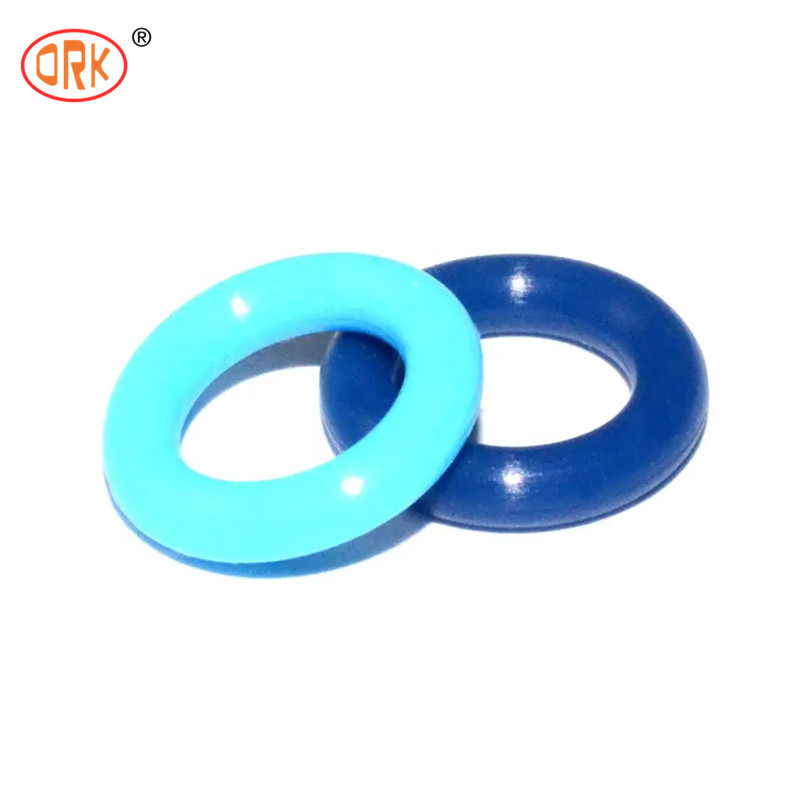

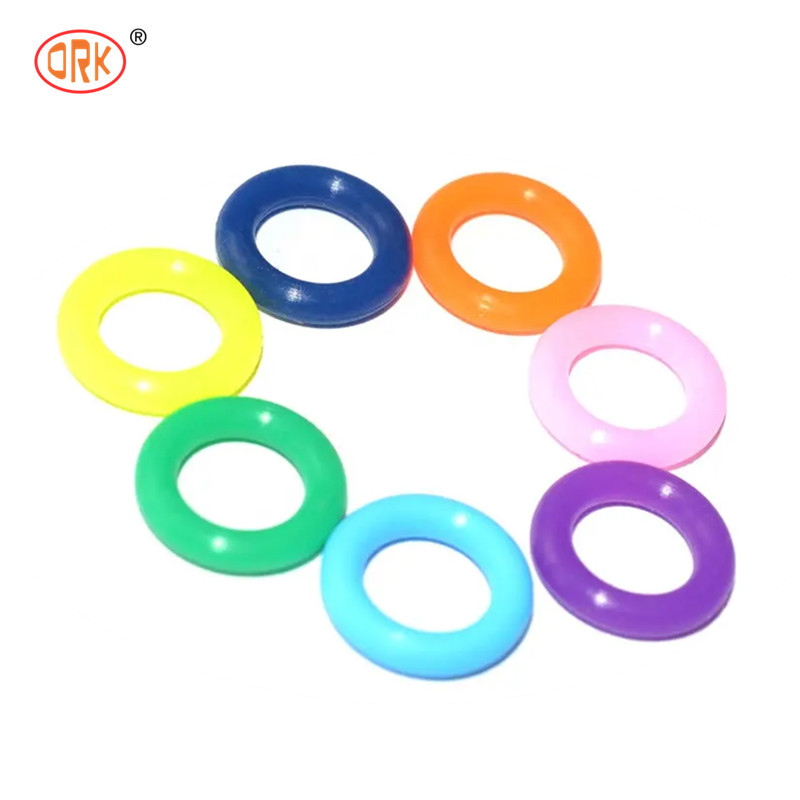

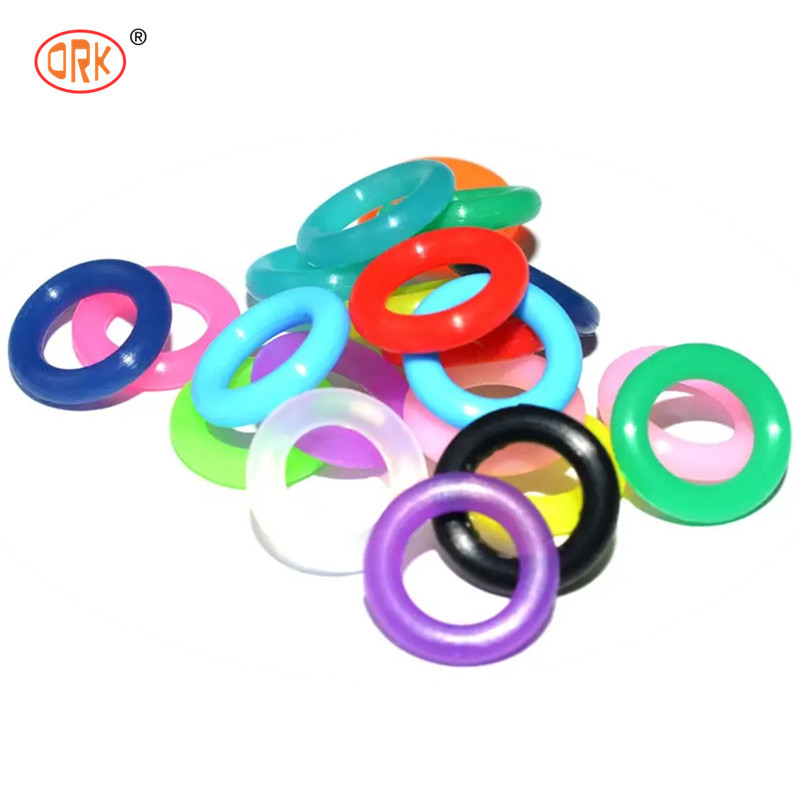

For color , we can make as customers' requirements .Below table is the colorful o rings
we made.If you need colored o rings , you can give me pantone number .
We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always
satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all
our new customers to become long-term customers.
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance ,Paypal is also ok
Send your inquiry directly to us
