Place of Origin:
Jiangxi, China
Brand Name:
ORK
Certification:
REACH / ROHS / ISO9001 / IATF / SGS / FDA
Model Number:
As per buyer's drawing
Video
Video
Video

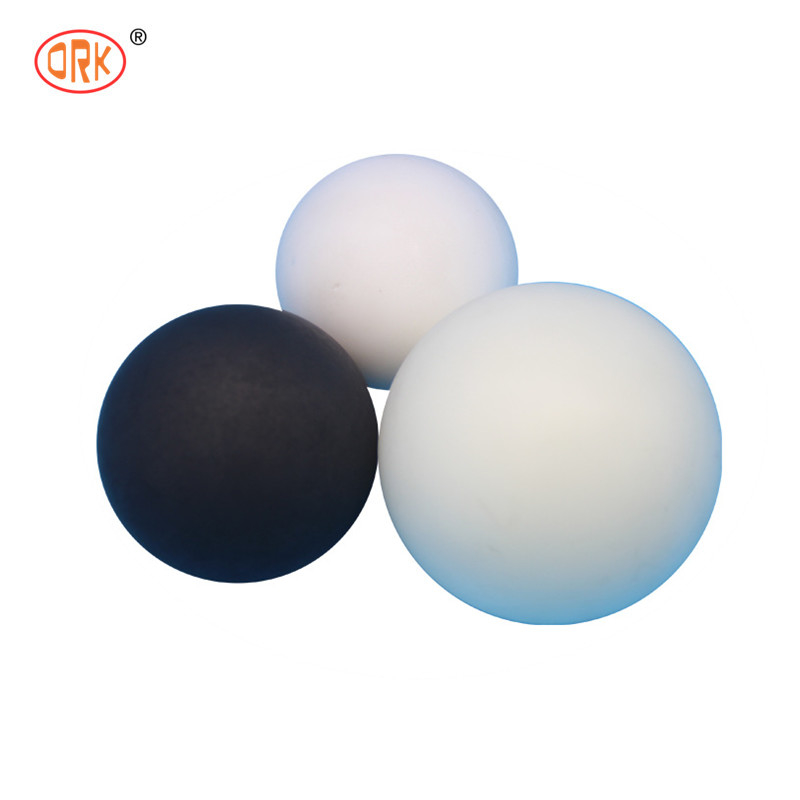

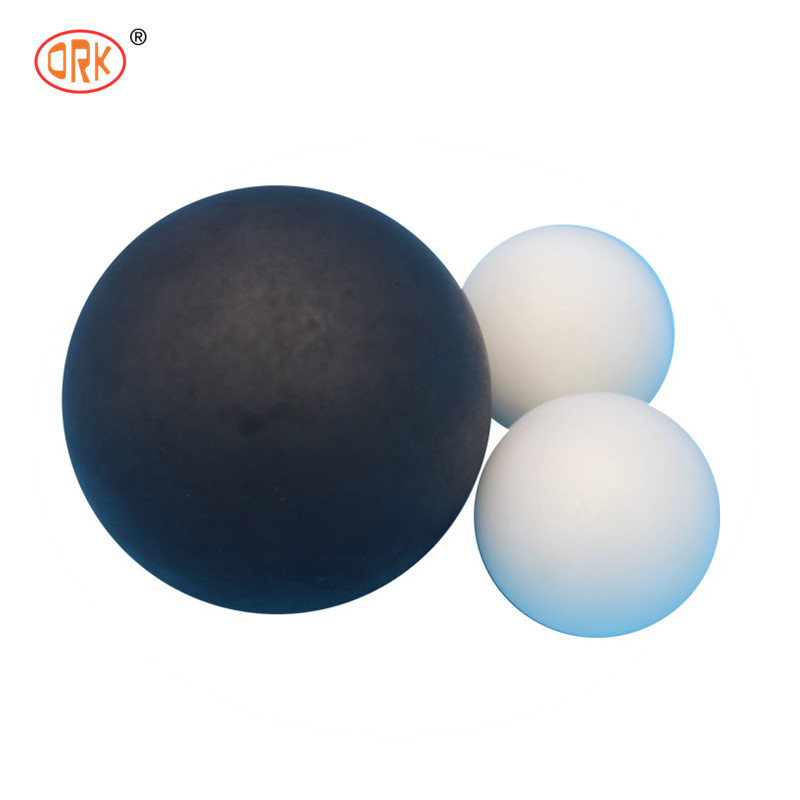

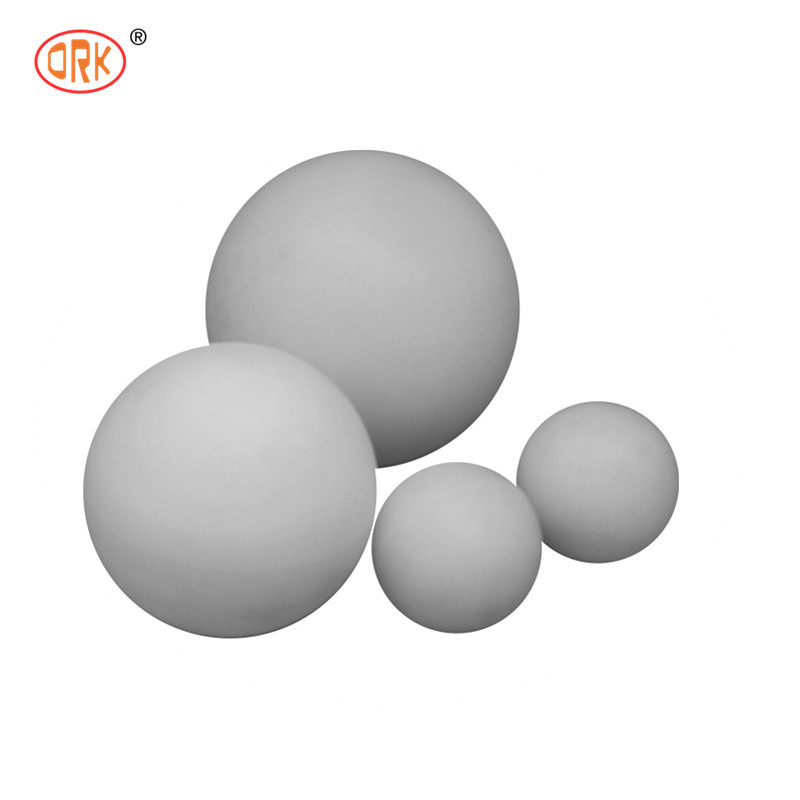

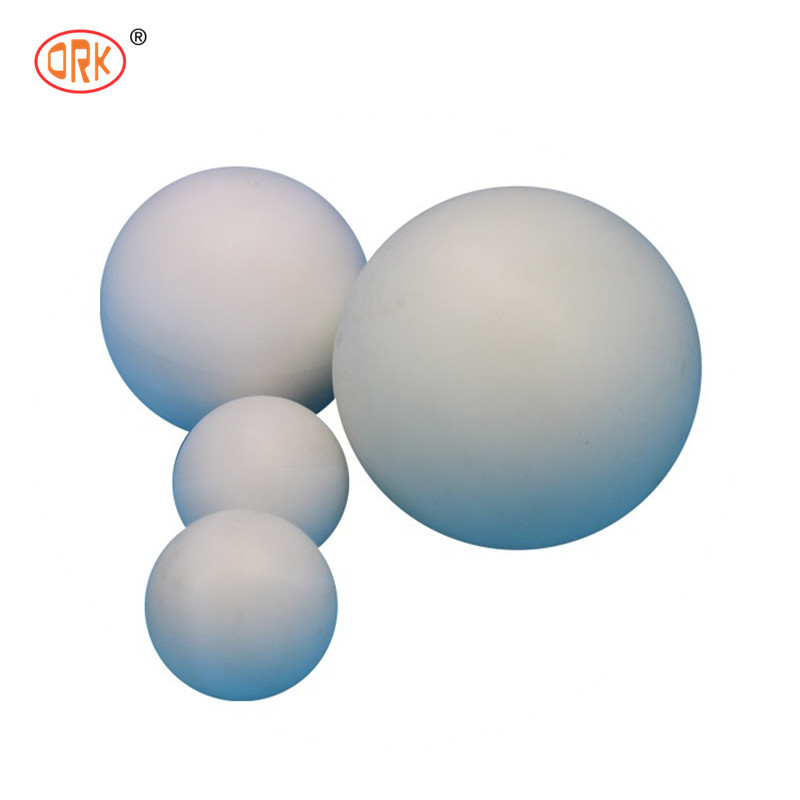

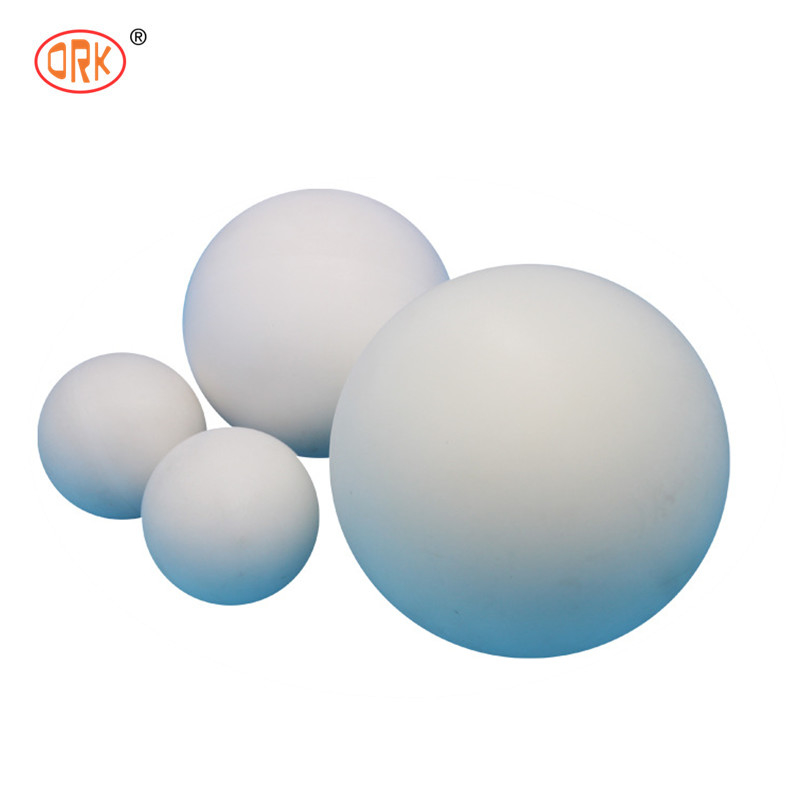

FPM/FKM White Solid Fluorine Rubber Ball for Sealing in High Temperature and Corrosion Environments
Rubber Balls Provide Excellent Sealing in Flow Control Applications such as Pumps and Check- Valves.
Rubber balls are of various types depending on their area of applications. There are molded rubber balls,
precision ground balls which are manufactured as per exact specifications. The commercial grade rubber balls
are produced as per industrial requirements. Ther are sponge rubber balls, rubber cleaning balls, rubber balls
used in check valves and many more.
FKM Rubber Features:
| Material | FKM/FPM |
| Advantage | 1,Excellent High Temperature Resistance |
| 2. Excellent Abrasion-Resistance | |
| 3,Excellent Oil Resistance | |
| 4.Excellent Weathering Resistance | |
| 5.Excellent Ozone Resistance | |
| 6.Good Water Resistance | |
| Disadvantage | 1.Poor Low Temperature Resistance |
| 2.Poor Oxygenated-Solvent Resistance | |
| Temperature | -20℃~250℃ , -40℃~250℃(special formula) |
| Application | 1.For Auto |
| 2.For Aerospace | |
| 3.For Electronic Products |
Viton belongs to the Fluoroelastomers (FKM/FPM) group of rubber compounds. There are many grades
and hardness variations to solve most applications with various formulations to meet specific requirements
of temperature and chemical resistance. Typical uses include:excellent heat resistance,good mechanical
properties,good compression set resistance,resistance to wide range of oils and fuels,resistance to solvents;
especially all aliphatic, aromatic and halogenated hydrocarbons and acids.
We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM ,SBR , FLS , etc...
What's Each Rubber's Typical Features ?
*Service Temperature
For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in extreme
temperature up to 300 C and down to -100 C.
*Application
Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive
and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that
need FDA approval for food handling equipment and appliances.
NBR Rubber Features:
Nitrile rubber (NBR, Buna-N) provides excellent resistance to petroleum oils as well as mineral and vegetable oil.
Nitrile rubber also offers strong resistance to heat aging - often a key advantage over natural rubber.
Nitrile rubber performs well in carburetor and fuel pump diaphragms, aircraft hoses, seals and gaskets as well as
oil-lined tubing. Due to its versatility, nitrile is used in applications involving not only oil and fuel resistance, but
those applications requiring resistance to heat, abrasion, water, and gas permeability.
EPDM Rubber Features:
EPDM rubber is a high density rubber primarily used for outdoor applications. It has dynamic and mechanical
properties between natural rubber and synthetic rubber.
Do not use EPDM if continual contact with petroleum based products is required.
Not recommended for usage in food applications or those that are exposed to aromatic hydrocarbons.
HNBR Rubber Features:
Hydrogenated Nitrile Butadiene Rubber (HNBR), also known as Highly SaturatedNitrile (HSN), is special class of nitrile
rubber (NBR) that has been hydrogenated to increase saturation of the butadiene segment of the carbon polymer
backbone. Subsequent improvements to the material properties, over that of a nitrile rubber (NBR), include greater
thermal stability, broader chemical resistance, and greater tensile strength.
HNBR is classified by ASTM as a DH-type polymer. This classification indicates 150ºC service temperature as well as less
than 30% swell in IRM 903 oil. HNBR can be formulated to meet application temperatures ranging between -50°C and 165ºC.
SBR Rubber Features:
1.Main materials: Styrene-butadiene rubber (SBR), a general-purpose synthetic rubber,produced from a copolymer of
styrene and butadiene. Exceeding all other synthetic rubbers in consumption, SBR is used in great quantities in automobile
and truck tires, generally as an abrasion-resistant replacement for natural rubber (produced from polyisoprene).
2.Available place: They are widely used in automobile, electrical appliances, building vibration isolation and other industry.
For example, air blower, water pump, instrument, measuring of ships and so on.
3.Main performance: SBR has similar chemical and physical properties to natural rubber, with generally better abrasion
resistance,outstanding strength,good creep and stress relaxation resistance and low cost,etc. It is not recommended to
use SBR in applications that involve ozone, strong acids, oils, greases, fats and most hydrocarbons.
Neoprene Rubber Features:
Neoprene Rubber, also known as neoprene polychloroprene, is an extremely versatile synthetic rubber with more than 75
years of proven performance.
In the automotive world, neoprene is used for many under-the-hood and underbody parts that require a reasonably priced,
mid-performance polymer with a good all-around balance of performance properties.
Natural Rubber Features:
Natural rubber was originally derived from latex found in the sap of rubber trees. The purified form of natural rubber can
also be produced synthetically. Natural rubber is an ideal polymer for dynamic or static engineering applications.
Caution: Natural rubber is not recommended for applications where the rubber part will be exposed to ozone, oils, or solvents.
PU/Polyurethane Rubber Features:
Polyurethane is an organic polymer. Polyurethanes are formed by reacting a polyol (an alcohol with more than two reactive
hydroxyl groups per molecule) with a diisocyanate or a polymeric isocyanate in the presence of suitable catalysts and additives.
Polyurethane is a widely used compound due to its superior strength, tear and abrasion resistance. Polyurethane also provides
excellent permeation resistance.
Features:
For color , we can make as customers' requirements .Below table is the colorful o rings
we made.If you need colored o rings , you can give me pantone number .
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Production Progress
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, Paypal is also accepted.
