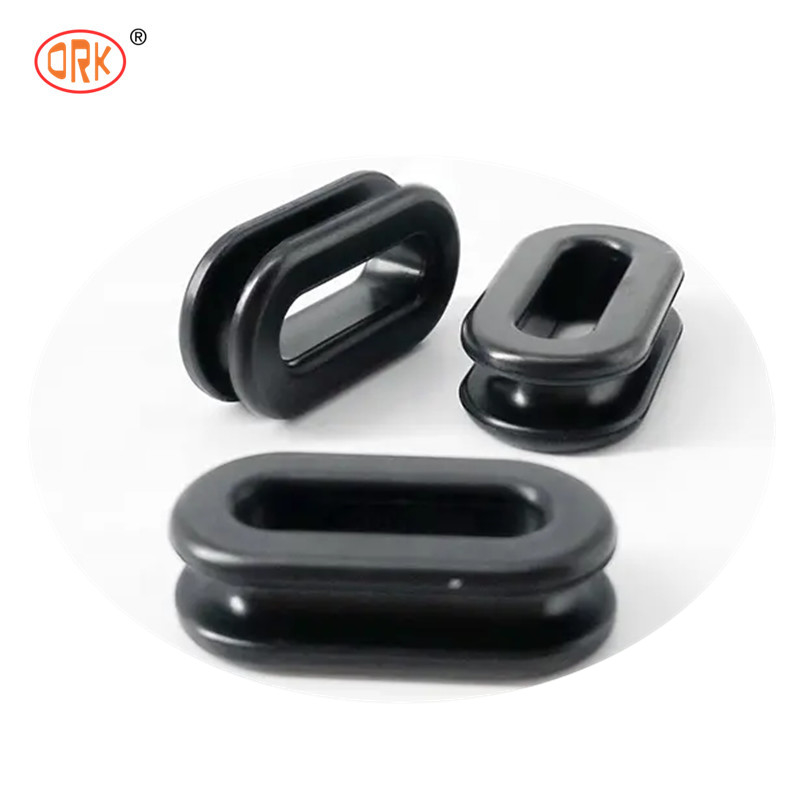

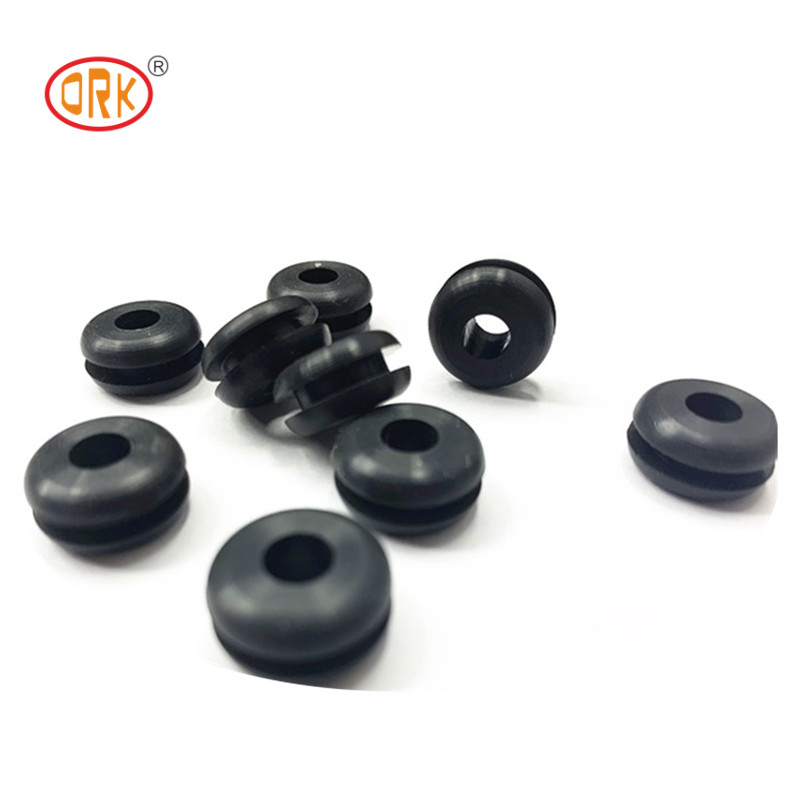

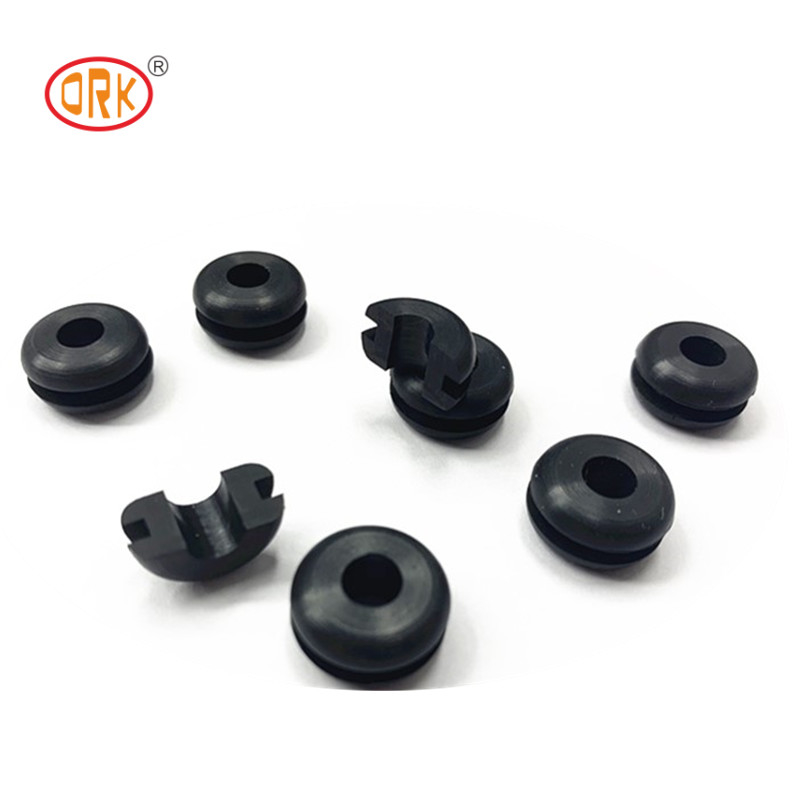

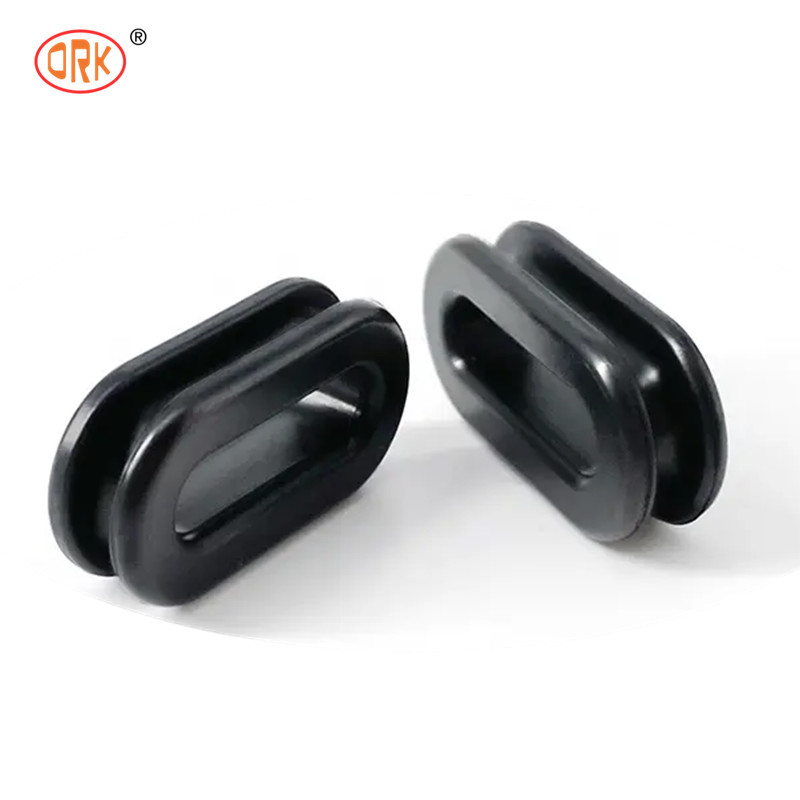

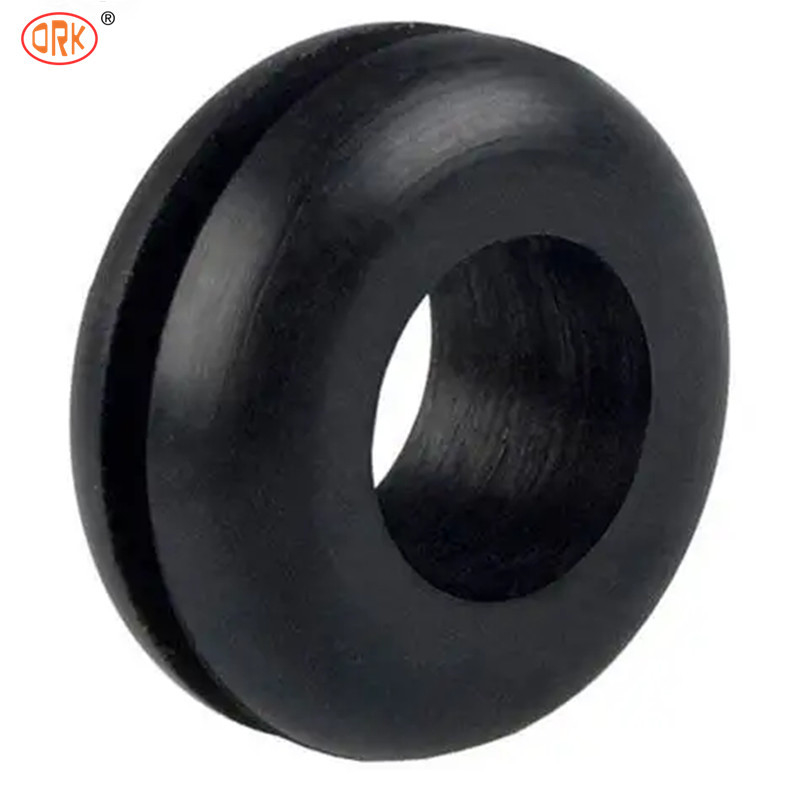

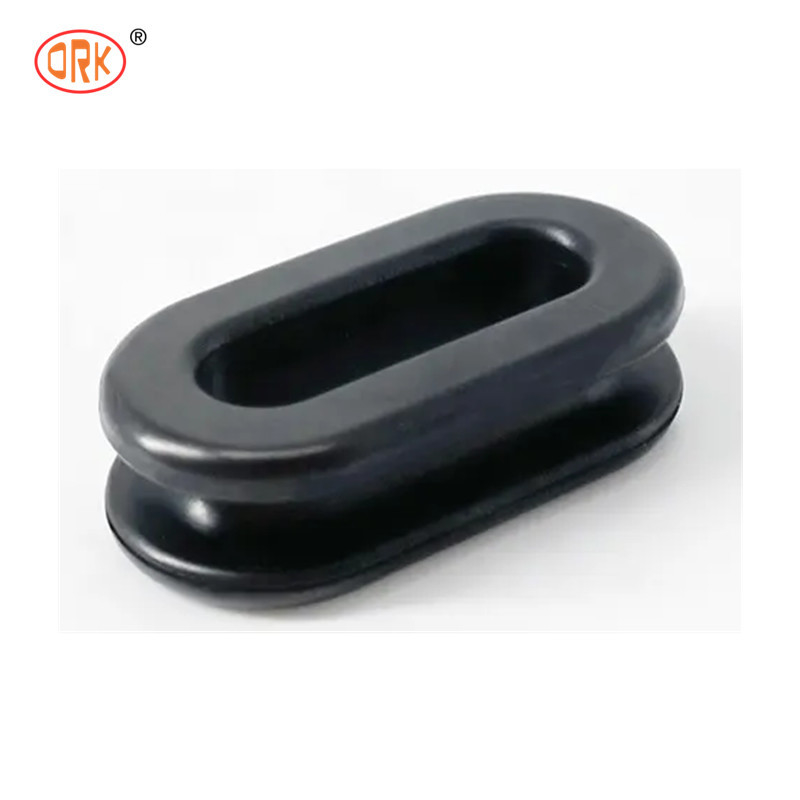

Black Neoprene CR Rubber Grommet Round Rubber Seals for Connector Wire Harness
Type: RUBBER GROMMET/GRUMMET
Rubber grommets/grummets are essentially rubber molded parts which are placed around drilled or punched
holes to an opening in a surface. Rubber robbin mechanically eliminate sharp edges providing a cushion of
protection for the items which passes through the surface material from tearing or breaking wire, cable, tubing,
piping, hoses, air lines, rope, etc, add aesthetic value to your applications. In addition, many grommets also
serve as seals.
We offer a variety of standard elastic grommets, and we can custom make grommets and other rubber components
to your unique specifications. Silicone rubber grommets can be made in various rubber compounds including,
silicone, Buna-N, Viton Neoprene and EPDM. Our silicone grommets are available varying from sizes and shapes
that are matched to all kinds of products, such as lighting products. Each lighting rubber grommet provides shock
protection and security to keep your vehicles lights safe and also improves the overall appearance.
Basic Information
1. Material
1). SBR Grommets
2). Buna-N Grommets
3). EPDM Grommets
4). Neoprene Grommets
5). Viton Grommets
6). Silicone Grommets
7). Natural Rubber Grommets
Neoprene Rubber Features:
| Material | CR/Neoprene/Polychloroprene |
| Advantage | 1.Excellent Abrasion-Resistance,Good Rebound Resistance |
| 2.Excellent Gas Aging Resistance | |
| 3.Good Oil and Fuel Resistance | |
| 4.Good Compression Resistance | |
| 5.Good Fire-resistance | |
| Disadvantage | 1.Poor Low Temperature Resistance |
| 2.Poor Electrical Insulation | |
| Temperature | -25~150 ℃ |
| Application | For heat - resistant conveyor belt |
| For oil and chemical-resistant hose | |
| For the cover of Wires and cables |
Neoprene Rubber, also known as neoprene polychloroprene, is an extremely versatile synthetic
rubber with more than 75 years of proven performance.
In the automotive world, neoprene is used for many under-the-hood and underbody parts that
require a reasonably priced, mid-performance polymer with a good all-around balance of
performance properties.
We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, ACM ,SBR , FLS , etc...
Different elastomers have different compatibility with various chemical elements and their characteristics.See
the table below for more material knowledge to order the most cost-effective o-rings from us.
| Material | Hardness (Shore A) |
Temperature (ºC) |
Main Color | Advantage | Price Level | Shelf Life (Years) |
| NBR / Nitrile / Buna-N | 60-90 | -40 - 120 | Black | Good oil resistance & low price | Low | 5-10 |
| HNBR / HSN | 60-90 | -40 - 150 | Green | Suitable for the cooling industry | High | 5-10 |
| FKM / FPM / Viton | 70-90 | -20 - 200 | Brown | High-temperature & chemical resistance | High | About 20 |
| EPDM / EPR | 50-90 | -50 - 150 | Black | Excellent weather & ageing resistance | Fair | 5-10 |
| VMQ / Silicone | 40-80 | -70 - 220 | Red | High-temperature & FDA food grade | High | About 20 |
| Neoprene / CR | 50-90 | -40 - 120 | Black | Versatility Properties | Fair | 5-10 |
| FFKM | 70-90 | -10 - 320 | Black | Excellent chemical & high-temperature | Highest | About 20 |
| FVMQ / Fluorosilicone | 40-80 | -60 - 200 | Blue | Wider operating temperature range | High | About 20 |
| Aflas / FEPM | 40-90 | -2 - 230 | Black | Good chemical compatibility | Higher | About 20 |
| PU / polyurethane | 60-90 | -40 - 90 | Natural | High strength and wear resistance | High | About 10 |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
CR-ROHS CANEC23015740939(SZP23-030677).pdf
For color , we can make as customers' requirements .Below table is the colorful o rings
we made.If you need colored o rings , you can give me pantone number .
Except Rubber Gasket for Electronic Home Appliances & electric seals , we can also produce rubber seals for
Automotive seals Oil & Gas seals , Coal Mining Machinery seal , Electronic Home Appliances & electric seals ,
Chemical equipment seals , Artificial intelligence & New Energy seal , Refrigeration seals , Aerospace seals ,
Hydraulic & Pneumatic seal , Food-grade seals ,Valve & pipe seals , Pump seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality, best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always
satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all
our new customers to become long-term customers.
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance against copy of B/L or L/C at sight, Paypal is also
