Place of Origin:
Jiangxi, China
Brand Name:
ORK
Certification:
REACH / ROHS / ISO9001 / IATF / SGS / FDA
Model Number:
AS568 & PG Standard O-Rings
Video
Video
2024 Customized Silicone Round Rubber Gasket Seals for Solutions AS568 PG Standard Size
Type: O Ring
Size: ID X CS, OD=ID + 2XCS
The o-rings used in cylinder, pump, railcars, truck, washing machine, instrument and meter,
mine equipment, pipeline, household appliances, automobile, steamboat, industrial electrical
equipment, building door& window, construction machinery, construction bridges and tunnel.
1. mechanical sealing, pressure vessel ,gas compressor, reaction vessel ,heat exchanger,
boiler, filter and so on.
2.it can be used for all kinds of electronic products in a wide range ,such as camera, mobile
phone, printer, computer.
3. Used for automobile windows and doors, etc...
4.Silk screen printing, spray coating, laser etching, back-lighted, hard/epoxy coating keypads.
Our Service for O-Ring
O Rings are one of our main products.We have VITON o-rings, Silicone O Ring, EPDM O Ring,
NBR O Ring, HNBR O Ring, NR O Ring, Neoprene O Ring, Dupont Viton O Ring, FFKM O Ring,
FVMQ O Ring,Aflas O Ring, etc.
We are specialized in the manufacturing kinds of rubber products for more than 30 years.
We can design and produce flat silicone rubber o-ring according to your drawings & samples.
If you are interested in our flat silicone rubber o-ring ,plaese don't hesitate to contact us.
And before we can quote you our best price, pls let us know some points:
| Material | SIL(Silicone Rubber) |
| Advantage | 1,Excellent Rebound Resistance |
| 2,Excellent Oxygen and Ozone Resistance | |
| 3,Excellent Weathering and Heat Resistance | |
| 4,Excellent Heat and Low Temperature Resistance | |
| 5,Good heat insulation and heat dissipation. | |
| 6,Good electrical insulation | |
| Disadvantage | 1,Poor Aliphatic-solvent Resistance |
| 2,Poor Alkaline Resistance | |
| Temperature | -40℃-220℃, -100℃-250℃(special formula) |
| Application | 1,the household appliances industry seal or rubber parts, such as electric kettle, electric irons, microwave oven rubber parts. |
| 2,The electronics industry seal or rubber parts, such as mobile phone keys, shock pad DVD, cable joint seal etc. | |
| 3,Contact with the human body on various types of products on the seal, such as water bottles, water dispensers |
*Service Temperature
For Silicones the service temperatures are from -60 C to 225 C. Some special types can be
used in extreme temperature up to 300 C and down to -100 C.
*Application
Silicone rubber performs well under environmental and temperature extremes. It is usually
applied in automotive and aerospace industries where flexibility and longevity are important.
It is also a suitable material for parts that need FDA approval for food handling equipment and
appliances.
| Viton O ring | Silicone O ring | NBR O ring | HNBR O ring | EPDM O ring | NR O ring | Peoprene O ring | |
| Abbreviation | FKM | silicone | NBR | HNBR | EPDM | NR | Neoprene |
| Durometer(shoreA) | 60-90 | 30-90 | 20-95 | 50-90 | 30-90 | 20-90 | 20-95 |
| Tensile(P.S.I) | 500-2000 | 200-1500 | 200-3000 | 2600 | 500-2500 | 500-3500 | 500-3000 |
| Elongation(Max.%) | 300 | 700 | 600 | 530 | 600 | 700 | 600 |
| Compression set | good | Good | Good | Excellent | Good | Excellent | Good |
| Resilience-Rebound | Fair | Good | Good | Excellent | Good | Excellent | Excellent |
| Abrasion Resistance | Good | Fair to poor | Excellent | Excellent | Good | Excellent | Excellent |
| Tear Resistance | Good | poor | Good | Excellent | Fair | Excellent | Good |
| Solvent Resistant | Excellent | poor | Good to excellent | Good | Poor | Poor | Fair |
| Oil Resistant | Excellent | Fair to poor | Good to excellent | Excellent | Poor | Poor | Fair |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
SIL-ROHS CANEC23015740921(SZP23-030677).pdf
SIL-REACH CANEC23015740923(SZP23-030677).pdf
Detasheet-Silicone50 Black(S5001).pdf

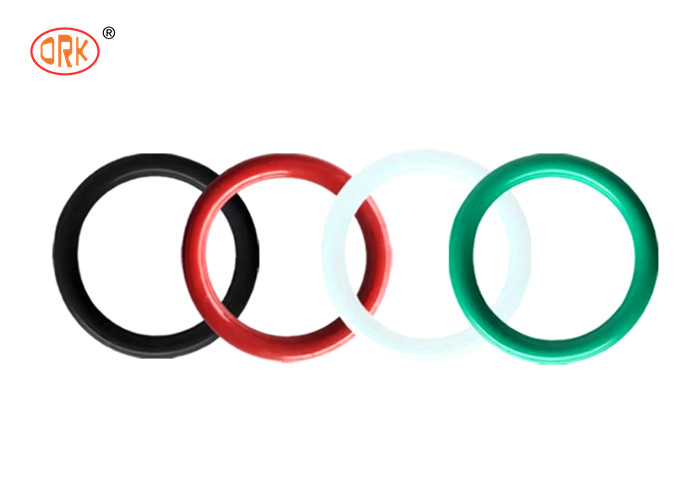

For color , we can make as customers' requirements .Below table is the colorful o rings we made.If you
need colored o rings , you can give me pantone number .
We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
1. Since 2006, focus on rubber seals, especially for auto parts
2. Certificates: ISO9001, IATF16949, ISO14001, ISO45001,ISO 13485
3. Two factories, more than 18000㎡,clean room 600㎡, with 300 workers.
4. Molds > 10000 sets, especially o rings, about 5000 sets.
5.O-ring series covers American standard (AS568), Japanese standard (JIS), national
standard(GB), and produces a large number of customized non-standard parts.
6. Material: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR .The rubber materials
used meet the requirements of ROHS2.0 and REACH235.
7. Material Certificates: FDA, ROHS, REACH, UL157, CP65 WRC, EN549,EN45545.
8. Products are widely used in automotive parts, electronic connectors, valves, pneumatics,
power tools, new energy, medical equipment, electronic products and other fields.
Ruichen always meets our customers' requirements. To make sure we produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T 2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method (Shore A)
6) Sampling inspection specification GB/T2828.1-20
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always
satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.
High Quality
We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all
our new customers to become long-term customers.
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR, ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic inspection machine full inspection, and according
to customer needs before the mass production of pre-production samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance ,Paypal is also ok
